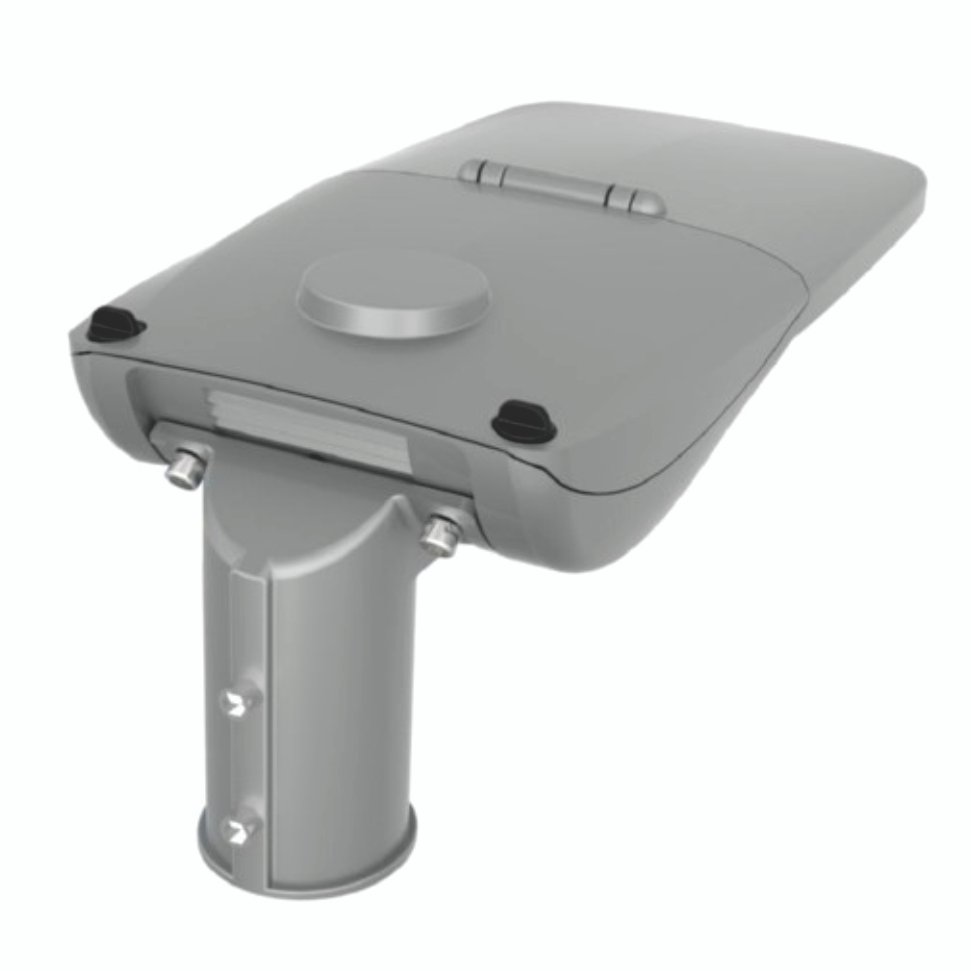

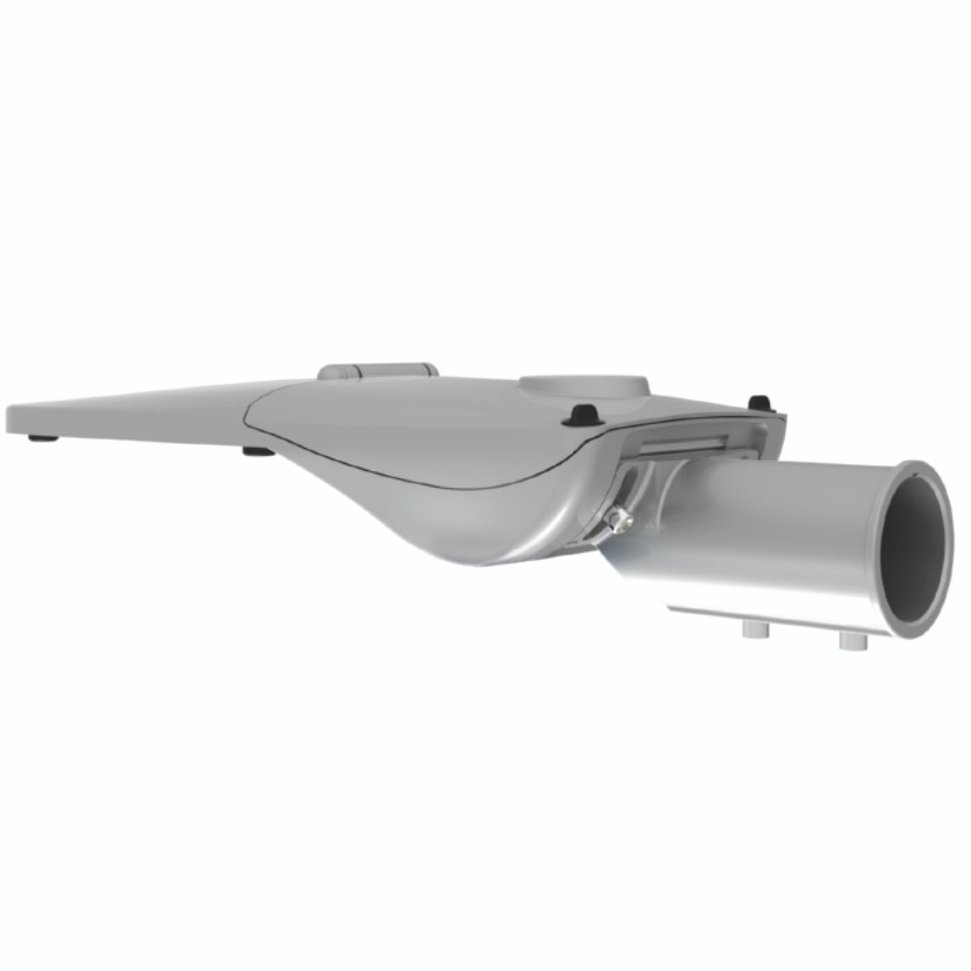

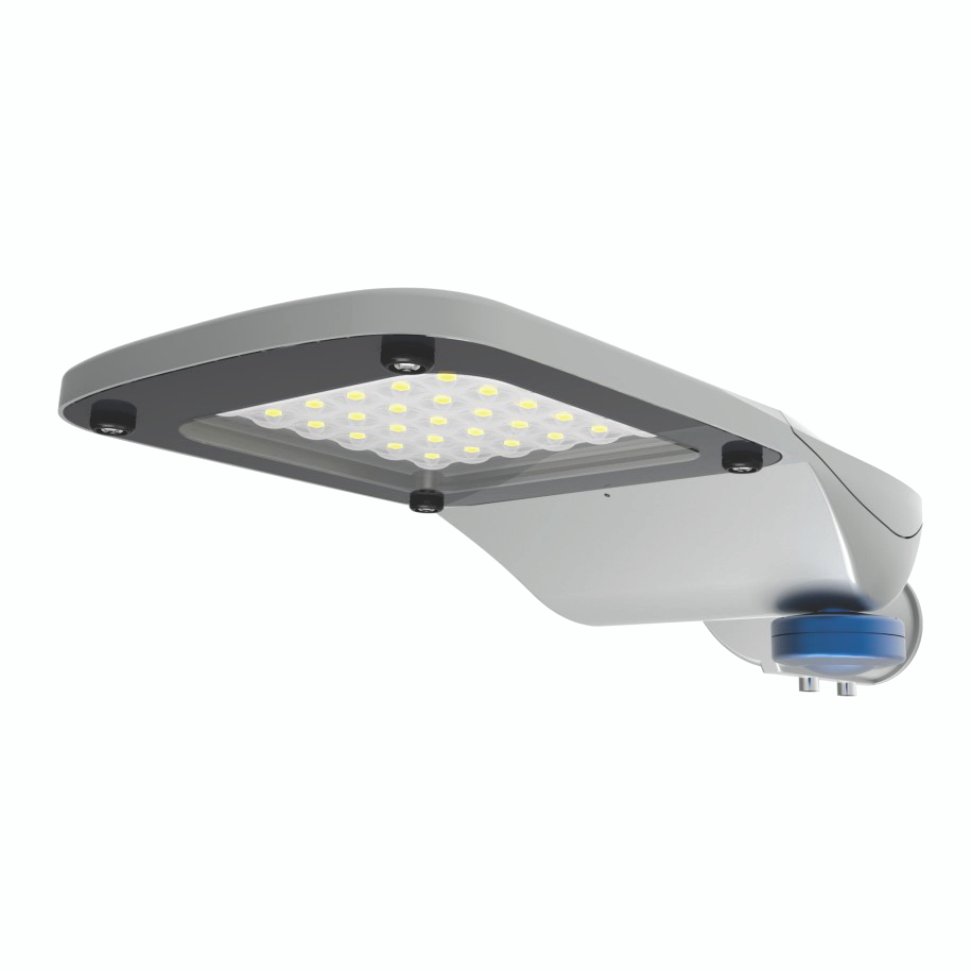

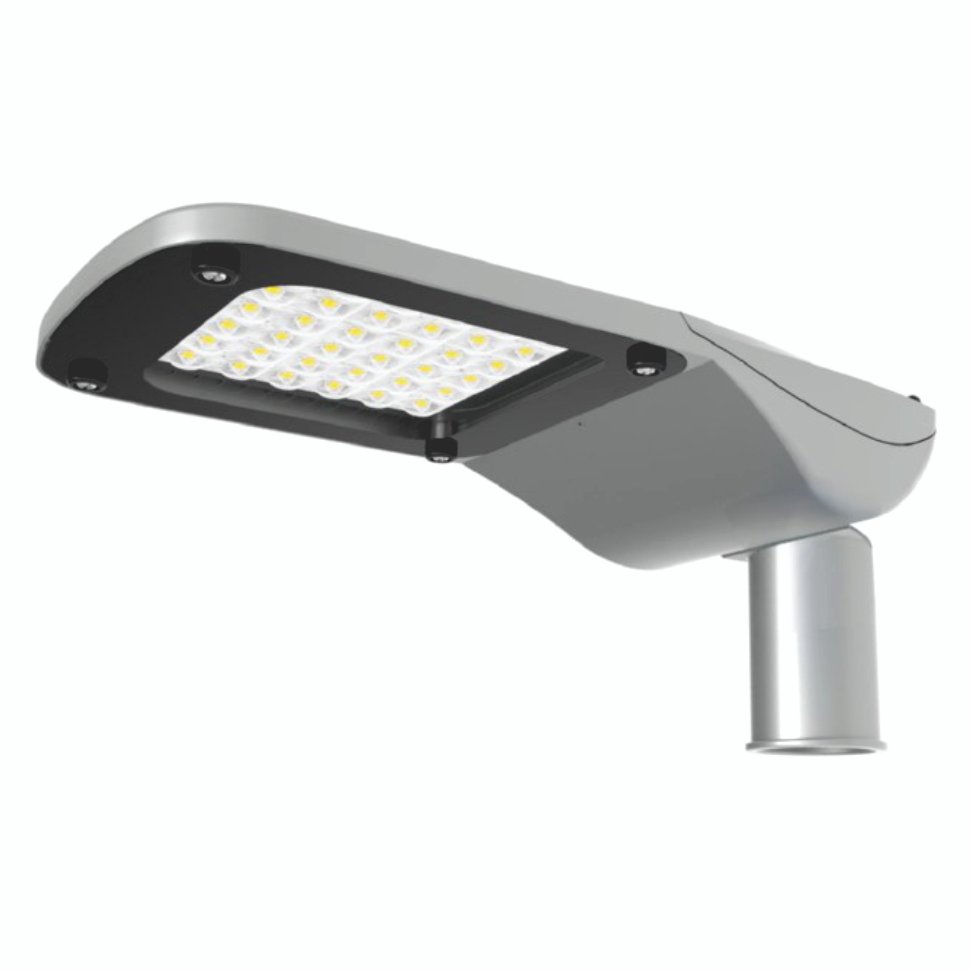

LED STREET LIGHT MSL Series
ITEM No. : MSL-A50
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 144pcs
Beam Angle: Type Ⅱ, Type Ⅲ, Type Ⅳ
Luminous Flux: > 8000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 50W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 4kg/4.5kg
Product/CTN Size: 484*230*127mm/417*264*155mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A100
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 216pcs
Beam Angle: Type Ⅱ, Type Ⅲ，Type Ⅳ
Luminous Flux: > 16000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 100W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 5kg/5.5kg
Product/CTN Size: 548*230*127mm/482*272*160mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A150
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 288pcs
Beam Angle: Type Ⅱ，Type Ⅲ，Type Ⅳ
Luminous Flux: > 24000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 150W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 6.4kg/7kg
Product/CTN Size: 598*257*129mm/542*302*160mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A200
Input Voltage: 85-305V AC
Led Lamp: PHILIPS 3030 LEDs 320pcs
Beam Angle: Type Ⅱ，Type Ⅲ，Type Ⅳ
Luminous Flux: > 32000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 200W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 6.4kg/7kg
Product/CTN Size: 655*320*131mm/612*372*185mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
Sản phẩm cùng mục
Series LED KH-SL077-(20W - 250W)-B-SMD
KH-SL077-20W-B-SMD
Power: 20W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 20PCS SMD CHIP；CRI>70；
2000 lm , 100 lm/w ; IP65；AC100-277V
Size :315*128*76mm；
ANGLE:120*60
Warranty:2 years
KH-SL077-30W-B-SMD
Power: 30W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 30PCS SMD CHIP；CRI>70；
3000 lm , 100 lm/w ; IP65；AC100-277V
Size :351*142*76mm；
ANGLE:120*60
Warranty:2 years
KH-SL077-50W-B-SMD
Power: 50W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 60PCS SMD CHIP；CRI>70；
5000 lm , 100 lm/w ; IP65；AC100-277V
Size :405*166*79mm；
ANGLE:120*60
Warranty:2 years
KH-SL077-100W-B-SMD
Power: 100W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 100PCS SMD CHIP；CRI>70；
10000 lm , 100 lm/w ; IP65；AC100-277V
Size :484*211*83mm；
ANGLE:120*60
Warranty:2 years
KH-SL077-120W-B-SMD
Power: 120W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 120PCS SMD CHIP；CRI>70；
12000 lm , 100 lm/w ; IP65；AC100-277V
Size :484*211*83mm；
ANGLE:120*60
Warranty:2 years
KH-SL077-150W-B-SMD
Color temperture: 150W 4000K 5000K 6000K
SMD 3030 180PCS SMD CHIP；CRI>70；
15000 lm , 100 lm/w ; IP65；AC100-277V
Size :580*242*83mm；
ANGLE:120*60
Warranty:2 years
KH-SL077-200W-B-SMD
Power: 200W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 240PCS SMD CHIP；CRI>70；
20000 lm , 100 lm/w ; IP65；AC100-277V
Size :580*242*83mm；
ANGLE:120*60
Warranty:2 years
KH-SL077-250W-B-SMD
Power: 250W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 250PCS SMD CHIP；CRI>70；
24000 lm , 100 lm/w ; IP65；AC100-277V
Size :580*242*83mm；
ANGLE:120*60
Warranty:2 years
Series LED KH-SL076-(20W - 100W)-B-SMD
KH-SL076-20W-B-SMD
Power: 20W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 20PCS SMD CHIP；CRI>70；
2000 lm , 100 lm/w ; IP65；AC100-277V
Size :300*104*45mm；
ANGLE:120*60
Warranty:2 years
KH-SL076-30W-B-SMD
Power: 30W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 30PCS SMD CHIP；CRI>70；
3000 lm , 100 lm/w ; IP65；AC100-277V
Size :340*125*48MM；
ANGLE:120*60
Warranty:2 years
KH-SL076-50W-B-SMD
Power: 50W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 60PCS SMD CHIP；CRI>70；
5000 lm , 100 lm/w ; IP65；AC100-277V
Size :390*147*60 MM；
ANGLE:120*60
Warranty:2 years
KH-SL076-100W-B-SMD
Power: 100W
Color temperture: 4000K 5000K 6000K
Desp.: SMD 3030 100PCS SMD CHIP；CRI>70；
10000 lm , 100 lm/w ; IP65；AC100-277V
Size :452*171*60MM；
ANGLE:120*60
Warranty:2 years
BD-SL100W
Điện áp: 85-265 VAC, 50/60Hz
công suất: 100W,
Lumen: 100 - 110 Lm/W
Ánh sáng: Trắng sáng, trắng ấm
Vỏ: hộp kim nhôm, Màu: Đen
Độ bền LED: 70.000 Giờ
LED STREET LIGHT MSL Series
ITEM No. : MSL-A50
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 144pcs
Beam Angle: Type Ⅱ, Type Ⅲ, Type Ⅳ
Luminous Flux: > 8000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 50W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 4kg/4.5kg
Product/CTN Size: 484*230*127mm/417*264*155mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A100
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 216pcs
Beam Angle: Type Ⅱ, Type Ⅲ，Type Ⅳ
Luminous Flux: > 16000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 100W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 5kg/5.5kg
Product/CTN Size: 548*230*127mm/482*272*160mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A150
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 288pcs
Beam Angle: Type Ⅱ，Type Ⅲ，Type Ⅳ
Luminous Flux: > 24000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 150W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 6.4kg/7kg
Product/CTN Size: 598*257*129mm/542*302*160mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A200
Input Voltage: 85-305V AC
Led Lamp: PHILIPS 3030 LEDs 320pcs
Beam Angle: Type Ⅱ，Type Ⅲ，Type Ⅳ
Luminous Flux: > 32000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 200W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 6.4kg/7kg
Product/CTN Size: 655*320*131mm/612*372*185mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
